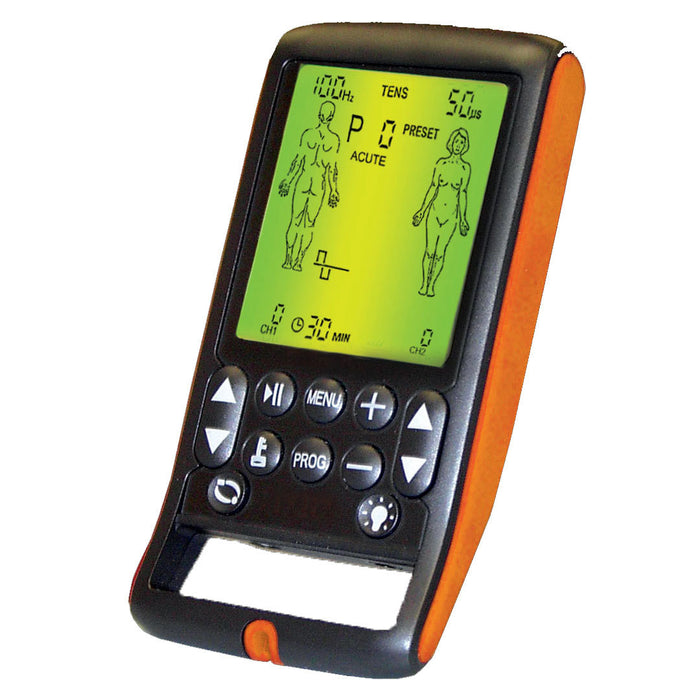

StimTec Plus TENS & EMS Unit

StimTec Plus
$300.00

The StimTec PLUS comes with retail box and everything a patient needs to get started. Combines the programming simplicity of the Target with the design and lithium battery of the NEO.

Features

  • Dual Channel Digital TENS & EMS
  • Excellent for Treating Chronic or Acute Muscle Pain
  • Quick & Easy Use
  • Lithium battery with charger

Targeted TENS programs:

  • NECK PAIN
  • LOW BACK PAIN
  • SCIATICA
  • ELBOW PAIN
  • WRIST PAIN
  • KNEE PAIN (Chronic & Acute)
  • ANKLE PAIN
  • HIP PAIN
  • MENSTRUAL CRAMPS
  • MIGRAINE
  • TORTICOLLIS

Targeted EMS programs:

  • TRICEPS
  • LATISSIMUS DORSI
  • SPINALIS MUSCLES
  • GLUTEUS
  • HAMSTRINGS
  • CALVES
  • ABDOMEN
  • ABDOMEN+WAIST
  • QUADRICEPS
  • THIGHS

Plus manual modes and LOCK button for both modalities

Comes Complete With:

  • 1 StimTecPLUS

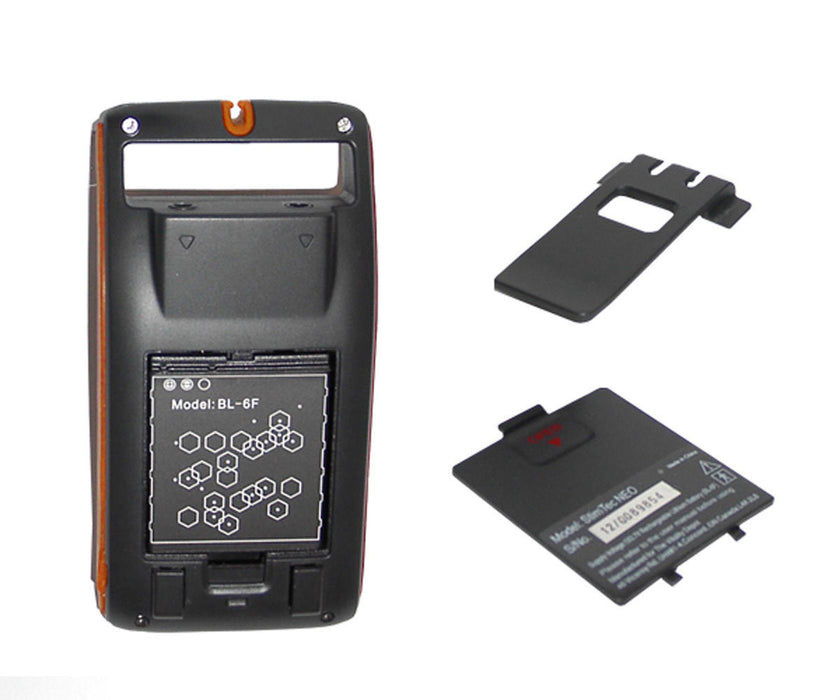

  • Lithium battery
  • Battery charger
  • AC adapter
  • 2 Lead Wires
  • 4 electrodes
  • User guides
  • Belt clip
  • Bilingual User Manual & Packaging
  • Carry case

 Health Canada Lic.#93562

 Specifications:

TENS:

  • Intensity 0-150mA zero to peak at 500ohm load
  • Frequency 1-150 Hz
  • Pulse width 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170, 180,190, 200, 210, 220, 230, 240, 250μs
  • Waveform Symmetrical bi-phase rectangular, Asymmetrical bi-phase rectangular, Mono-phase rectangular
  • Treatment timer Continuous, 15, 30, 45, 60, 90min

EMS:

  • Intensity 0-150mA zero to peak at 1000ohm load
  • Frequency 1-120 Hz
  • Pulse width Positive phase: 50-400μs, in steps of 50μs
  • Waveform Symmetrical Bi-Phasic rectangular, Alternated Bi-Phasic rectangular
  • Ramp up time 0-5s in steps of 1s
  • Ramp down time 0-5s in steps of 1s
  • On time 1-60s in steps of 1s
  • Off time 0-60s in steps of 1s
  • Treatment timer Continuous, 10, 20, 30, 45, 60, 90min
